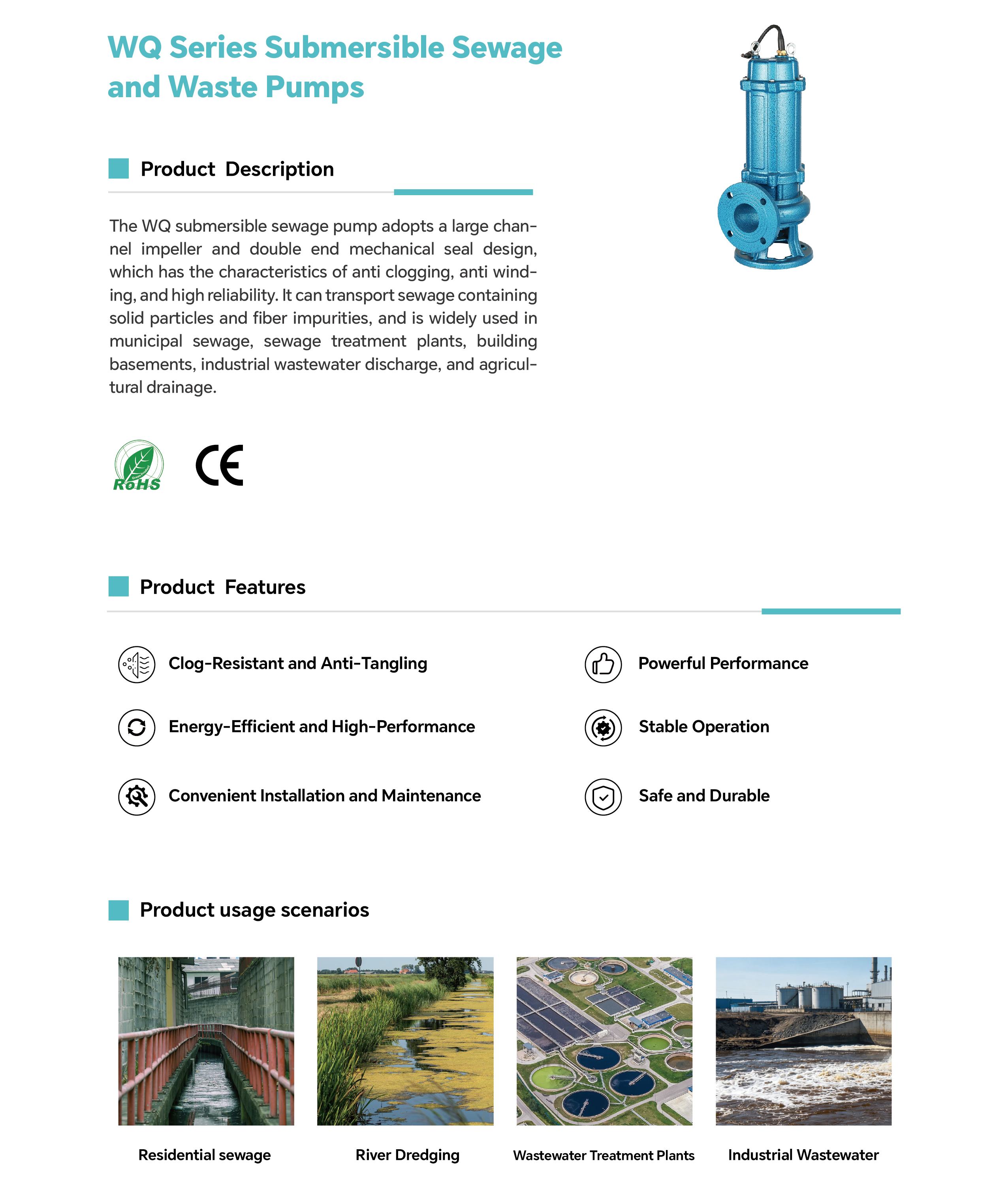

WQ Series Submersible Sewage Pump for Wastewater and Industrial Drainage

The WQ series submersible sewage pump is an engineered, heavy-duty fluid management solution developed specifically for transporting raw sewage, industrial wastewater, commercial effluents, heavy slurry, and dirty water containing large suspended solids or fibrous impurities. Operating entirely underwater within wet-pit chambers or collection sumps, this high-performance submersible sewage pump ensures immediate priming, direct fluid engagement, and optimal motor heat dissipation during long drainage cycles. This submersion feature vastly simplifies station blueprints, removes dry-priming delays, and provides uninterrupted operation for global water management facilities.

Constructed from high-density, thick-walled cast iron or specialized corrosion-resistant alloys, the WQ series submersible sewage pump provides outstanding wear resistance, superb mechanical stability, and multi-stage sealing protection for continuous underwater execution. Featuring an optimized, wide-passage hydraulic casing and a robust centrifugal impeller layout, this premium heavy-duty wastewater pump allows the trouble-free transit of spherical solids, mud clumps, and organic sediments without triggering structural clogs. Whether running emergency city flood dewatering, discharging factory processing waste, or regulating agricultural irrigation grids, this versatile WQ pump offers an energy-saving, low-maintenance solution for modern sewage handling applications.

Main Advantages & Value Proposition

Investing in our WQ series submersible sewage pump delivers immediate technical and operational advantages for commercial engineering inventories:

Optimized Non-Clog Solid Clearance: The wide volute passage combined with a centrifugal impeller allows spherical solids and soft mud to pass smoothly without clogging internal components.

Heavy Cast Iron Structural Longevity: Formed with high-density casting, this submersible sewage pump absorbs operating vibrations effortlessly, reducing mechanical stress on internal bearings.

Energy-Efficient Fluid Dynamics: Computer-optimized hydraulic flow pathways ensure the pump converts motor power into maximum volumetric flow with minimal friction losses.

Dual Ingress Protection Security: Dual tandem mechanical seals inside an isolated oil reservoir create a multi-layer barrier that prevents fluid from contacting the copper windings.

Flexible Guide-Rail Coupling: Fully compatible with standard automatic coupling systems, allowing operators to hoist the heavy-duty wastewater pump for routine checks without entering toxic wet wells.

Advanced Manufacturing Craftsmanship & Structural Features

At Larissa pump's 2,891 square meter specialized production facility, each WQ series submersible sewage pump is engineered utilizing high-precision CNC machining centers and automated diagnostic check stations:

Hydrodynamically Balanced Non-Clog Impeller

The hydraulic core of our submersible sewage pump features a dynamic single- or double-channel cast iron impeller. Every component undergoes strict dynamic balance testing to remove shaft vibration, lowering bearing friction and maximizing solid-handling profiles.

100% Pure Copper-Wound Submersible Motor

The drive core features 100% pure copper wire windings wrapped in high-temperature enamel insulation. This layout guarantees that the heavy-duty wastewater pump maintains optimal torque efficiency, reduces internal resistance, and prevents premature insulation breakdown during continuous long-duration running cycles.

Dual-Surface Silicon Carbide Mechanical Seals

To ensure absolute moisture protection under high fluid pressures, the shaft features a dual-stage tungsten carbide / silicon carbide mechanical seal layout housed inside an isolated lubricating oil chamber, creating a bulletproof barrier against liquid leaks.

Strict Quality Standards & Professional B2B Service

As an established global manufacturer and exporter of heavy-duty WQ series submersible sewage pumps, our operations are anchored by rigorous international quality assurance metrics.

[Mandatory B2B Factory Inspection Protocol]

Raw Iron Quality Audit -> Impeller Dynamic Balance Check -> IP68 Hydrostatic Seal Test -> 100% Flow Curve Verification

Every single WQ series submersible sewage pump undergoes a mandatory 100% automated pressure, electrical insulation, and underwater sealing test before export boxing, ensuring defect-free field reliability from the moment it arrives at your project site.

Strategic OEM & ODM Batch Customization:

Metallurgical Adjustments: Upgrading pump bodies to 304 or 316 stainless steel for highly acidic chemical fluids, or adding hard alloy cutter mechanisms for stringy debris.

Electrical System Changes: Customizing power cable lengths (up to 30+ meters), integrating integrated automatic float switch clips, and matching specific industrial voltages (220V-480V).

Branding & Industrial Finish: Precision laser logo etching, custom nameplates, and specialized heavy epoxy coatings applied to match your corporate brand scheme.

Versatile Application Scenarios

The high-flow handling capabilities of the WQ series submersible sewage pump make it a core asset across multiple municipal, agricultural, and industrial environments:

A. Municipal Sewage Systems & Residential Drainage

Extracts raw sewage, domestic effluent, and blackwater from municipal lift stations, city collection hubs, civil treatment plants, and commercial high-rise sumps.

B. Industrial Wastewater Discharge & Mining

Pumps chemical wastewater, industrial slurry, mining mud, and paper mill runoff out of factory sedimentation tanks and holding ponds.

C. Construction Dewatering & Aquaculture

Quickly clears out muddy water accumulation, sand-filled groundwater, and trench runoff from open foundation excavations, and manages water circulation in large fish farms.
